Solenoid Directional Control Valve WE6, Cetop 3 Series

1. Double attachable solenoids, high performance wet-pin
2. Various spool functions and four voltage optional
3. Standard mounting pattern conforms to ISO4410, DIN24340 from A & Cetop-RP 121h

  • Description
  • Reviews (0)
  • Data Parameter

Product Description

Solenoid Directional Control Valve

Solenoid directional control valve WE6, Cetop 3 series conforms to NFPA standard pattern for modular assemble and subplate installation. This is 4/3 (3 directional position & 4 oil porting) with different function of spool types for optional, it is usually used to control the double acting cylinder in hydraulic machines, or control the rotation way of hydraulic motor. There are three basic spool position, such as closed, open and tandem center combination with different type of spool, the solenoid directional control valve We6, Cetop 3 series can achieve many functions each requirement.

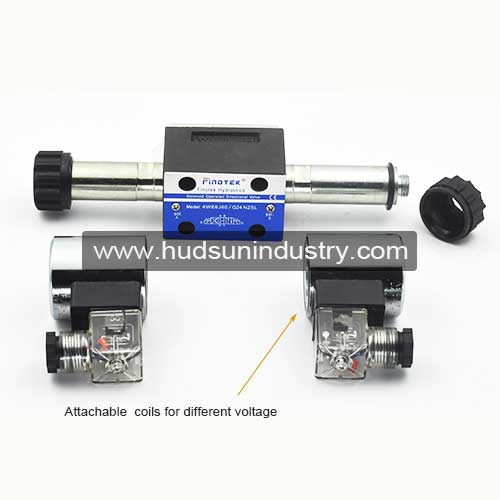

The mounting of the solenoid directional control valve applies to subplates and manifolds of DIN 24340 form A, ISO 4401 and CETOP RP 121H with G1/4, G3/8, G1/2 & M22x1.5 connection ports. All the valve is protected by a plastic bottom board keeping the mounting surface smoothly without leakage. The solenoid directional control valve is double coils as standard package, the attachable solenoid is wet-pin design for 12VDC, 24VDC & 110VAC, 220VAC voltage operation, with concealed manual override for emergency, and coils rotated by 90°C allowed.

Ordering Code Of WE6, Cetop 3 Series Valve:

FT- 4 WE 6 E 6X / E G24 N Z5L /
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12) (13)

(1) Producer Code= FT

(2) Oil porting= 4

(3) Valve size= 6

(4) Spool symbol= G, J, H, E, Etc. Please slect the type of spool in your order

(5) Valve series

(6) No code= Spring return
    O= Without spring return
    F= Without spring return with detent

(7) E= Wet-Pin design and with detachable coil

(8) G24= DC voltage 24V
  G12= DC voltage 12V
  W220= AC voltage 220~230V 50/60 Hz
  W110= AC voltage 110V 50/60 Hz

(9) N= With manual override

(10) Z5L= Plug-in connection with indicator lamp

(11) No code = Without Throttle insert
B08= Throttle 0.8mm[0.031inch]
B10= Throttle 1.0mm[0.039inch]
B12= Throttle 1.2mm[0.047inch]

(12) No code = NBR seals for petroleum oil
     V = FPM seals for phosphate ester

(13) No code = Black Galvanization
     B= Blue Powder Coating

Spool Symbols For WE6, Cetop 3 Series Valve:


Solenoid Directional Control Valve WE6, Cetop 3 Parts Explanation:
Solenoid-Directional-Control-Valve-WE6,-Cetop-3-valve-dimension-installationSolenoid Directional Control Valve WE6, Cetop 3 Part List:
1. Valve solenoids
2. Manual override button
3. “N” Size solenoid with manual override button
4. Plug-in connectors comply with DIN43650
5. Valve nameplate
6. O-ring: 8.75×1.8
7. End cap, only for single solenoid
8. Space needed for disassembling plug-in connectors
9. Space needed for took out coil
10.Fastened cover, force needed: Ma=4Nm
11. Installation pattern: DIN24340, ISO4401 & CETOP-RP121H

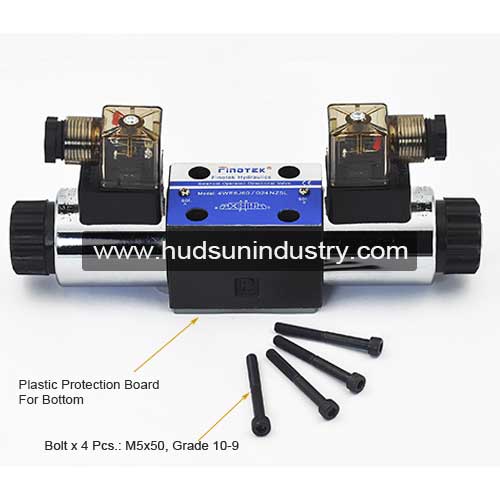

Note: Fastened bolts: M5x50 (Complied with GB/T70.7-10.9 grade)


There are no reviews yet. Add a review

General Information

Raw materials of valve house

Casting iron with first grade

Max. working pressure at T port

210Bar[3045Psi] for DC ; 16Bar[232Psi] for AC

Max. working pressure at P, A , B port

315Bar [4568]

Max. working flow rate

80L/min for DC ; 60L/min for DC ;

Available voltage

12, 24VDC ; 110, 220VAC 50~60 Hz

Voltage tolerance allowed

+10% ~ -15%

Electric power

30W for DC

Switching time (ISO 6403) - ON
25~45ms for DC ; 10~20ms for AC
Switching time (ISO 6403) - OFF
10~25ms for DC ; 15~40ms for AC
Switching frequency
Up to 15000 for DC ; Up to 7200 for AC
Max. coil temperature
+150°C for DC ; +180°C for AC
Electrical protection class
Hydraulic fluid temperature range
-30 to +80°C for NBR seals (O-rings) ; -15 to +80°C for FKM seals (O-rings)
Hydraulic fluid available
DIN 51524 2 mineral oil ; VDMA 24568 fast biodegradable fluids; HETG; HEPG (polyglycols); HEES (synthetic esters); other hydraulic fluid oil as per request
Hydraulic fluid viscosity range
2.8 to 500mm2/s

Recommended hydraulic fluid filtration for contamination

ISO 4406 Standard, cleanliness class:20/18/15
